Rim Gate Smart Locks

Rim Gate Smart Locks for Outdoor Metal Gates

A rim gate smart lock mounts on the inside face of the gate instead of in a mortise pocket, so it suits tube and sheet-metal gates with no room for a lock body. Our L1 fits gates 35–65 mm thick, is rated IP66 and comes with TTLock Bluetooth or Tuya Wi-Fi. Its L2 version has a keypad built into the rear lock body, for PIN operation from the inside.

  • Surface-mounted, no mortise pocket
  • IP66, −30°C to 70°C
  • TTLock Bluetooth or Tuya Wi-Fi
  • L2 version with a keypad on the rear body for inside PIN
L1 rim smart lock fitted to a black metal garden gate
Model

The L1 Rim Gate Lock

L1 pairs a compact outside panel with a rim body and strike on the inside of the gate. The front housing is SUS304 stainless steel; the rear body comes in an iron version for lower-cost projects or a stainless steel version. Finishes are stainless steel or black.

Every L1 opens with fingerprint, PIN, RFID card or mechanical key. It runs on four AA batteries with a 5 V Type-C emergency input.

L1 IP66 rim gate smart lock
Dimensions

L1 Dimensions

PartSizeWhat to check on the gate
Door fit35–65 mmGate thickness where the lock is mounted
Front panel155 × 60 mm, 15.8 mm deepFlat area on the outside face
Rear rim body130 × 100 mm, 45 mm projectionFlat area and clearance on the inside face
Strike35 mm wideRoom on the post or second leaf

The 35 mm is the width of the strike, not the gap between gate and post.

Versions

Versions and Capacities

VersionConnectionFingerprintsPINs and cards
L1 TTLockBluetooth; remote access with a TTLock gateway100250 PINs and 1,000 cards
L1 TuyaWi-Fi100Up to 300 PINs and cards combined

Choose TTLock for gates shared by many residents with cards, and Tuya Wi-Fi when the owner wants to open the gate from the app without a gateway. Remote access on TTLock models needs a TTLock gateway and a Wi-Fi connection.

Fit

Mounting and Strike Alignment

The rim body needs a flat, solid surface on the inside of the gate. Open bars, curved tubes or thin unsupported sheet need a mounting plate, which the gate maker can weld in. Check the gate in its normal closed position: hinge play or a sagging leaf moves the strike out of line, and the lock should engage without lifting or pushing the gate.

On a double gate, fix the second leaf with a drop bolt before mounting the strike on it. Leave room behind the rear body to change the batteries once the lock is fitted.

Alternatives

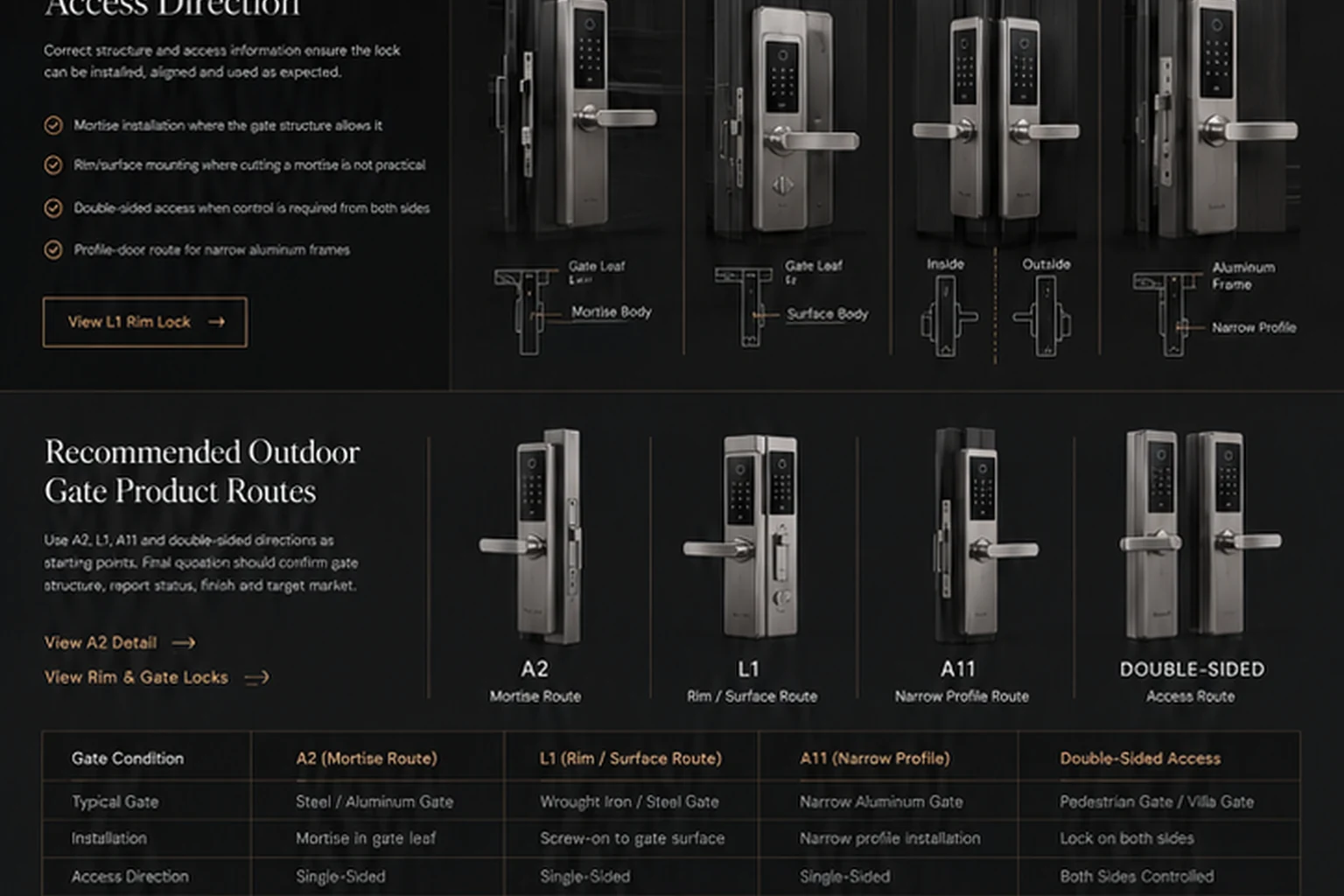

When to Choose Another Lock

If the gate has a box section with room for a mortise, a mortise lock such as A2 or A11 hides the lock body inside the gate. If people need a full credential panel and handle on both sides, compare the double-sided smart locks.

FAQ

Frequently Asked Questions

What is the difference between a rim lock and a mortise lock?

A rim lock mounts its body on the surface of the door or gate. A mortise lock sits in a pocket cut into the door edge. Rim locks suit gates without room for that pocket.

Is L2 a separate lock?

No. L2 is a version of L1: its rear lock body has a built-in keypad for PIN operation from the inside. The front unit, gate fit and power are the same as L1.

Is the rear body stainless steel?

It comes in two versions: iron, for lower-cost projects, and stainless steel. State which one you need on the order.

Can I start with photos of an existing gate?

Yes. Send the outside and inside faces, the latch edge, the post or second leaf with the gate closed, the gate thickness and the quantity.

Get Started

Put the Right Lock on Your Gate

Send photos of both faces of the gate, its thickness, the quantity and your market. Tell us if you need L2, the version with the inside keypad.
