A2 Double-Sided
353 × 73 mm panels, 6068 motorized mortise, 5,000 mAh

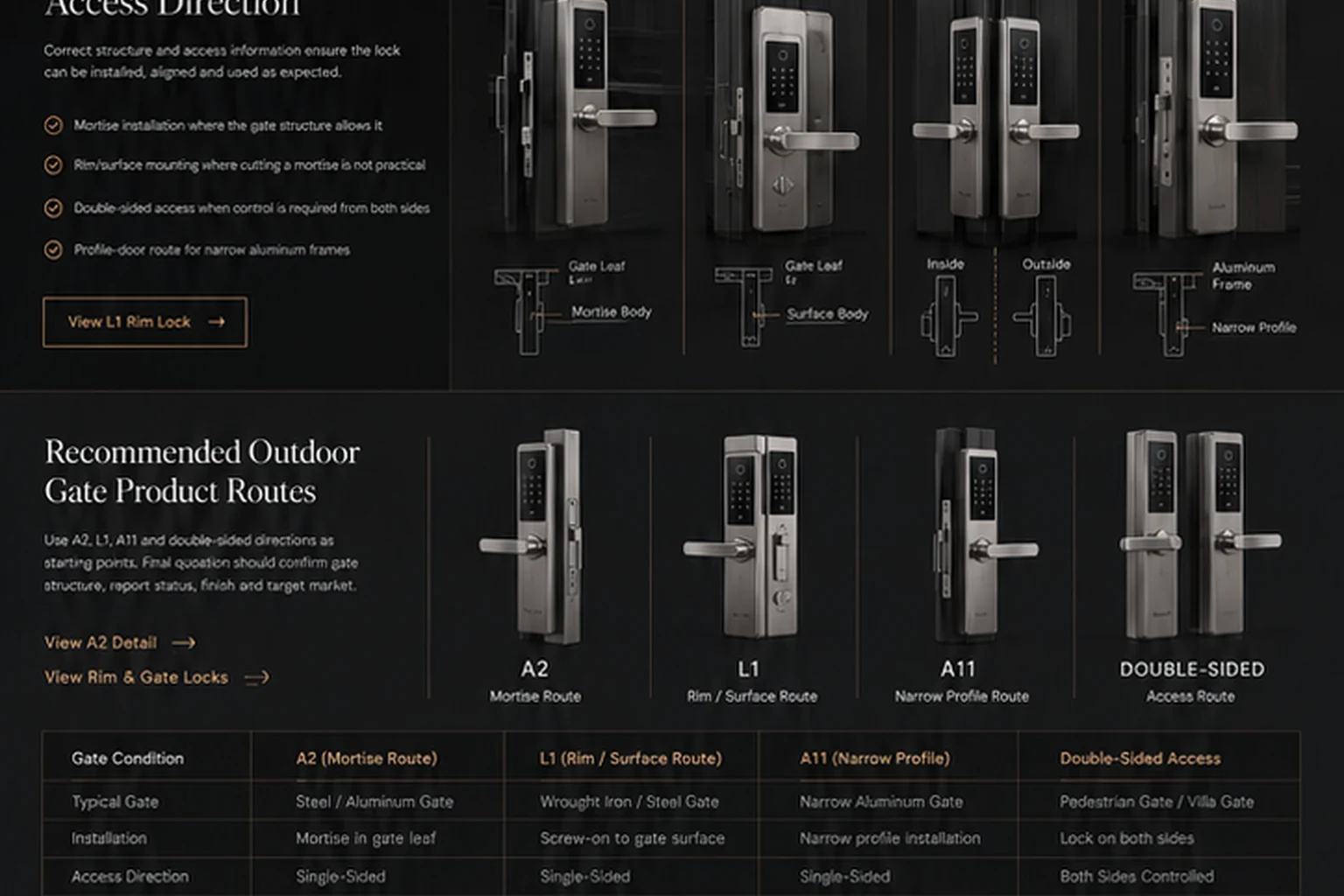

View modelA double-sided smart lock puts a credential panel on both faces of the door, so people need a fingerprint, PIN or card to pass in either direction. Our four double-sided models are all IP66 and run on rechargeable lithium batteries: A2 Double-Sided for entrance and gate doors up to 120 mm, and A11, A6 and R9 Double-Sided for aluminum profile and courtyard doors.


353 × 73 mm panels, 6068 motorized mortise, 5,000 mAh
View model


370 × 36 mm panels, 2,600 or 3,800 mAh, face version
View model| Model | Panel (mm) | Door thickness | Power | Lock body | App and credentials | Operation |
|---|---|---|---|---|---|---|
| A2 Double-Sided | 353 × 73 | 40–120 mm | 5,000 mAh lithium | 6068 motorized mortise | Tuya Bluetooth; 100 fingerprints, 50 PINs, 100 cards | Lever |
| A11 Double-Sided | 290 × 40 | 40–90 mm | 1,000 mAh lithium | 2585 to 7085 | Local; optional Tuya Wi-Fi; 100 fingerprints, 100 PINs, 100 cards | Lever |
| A6 Double-Sided | 375 × 40 | 40–90 mm | 1,000 mAh lithium | 2585 to 7085 | Local; optional Tuya Wi-Fi; 100 fingerprints, 100 PINs, 100 cards | Lever |
| R9 Double-Sided | 370 × 36 | 40–70 mm | 2,600 mAh lithium; optional 3,800 mAh | 2585 to 7085 | Tuya Bluetooth; optional 3D face (outside panel) | Automatic |
All four have SUS304 stainless steel housings, IP66 protection, a mechanical key and a 5 V Type-C emergency input, and work from −30°C to 70°C.
Choose double-sided when the inside of the door is also an outdoor or shared space, such as a courtyard gate between a street and a garden, or a door between two controlled areas. If people only need a credential from outside and can leave with the handle, a single-sided lock is simpler: see rim gate and waterproof smart locks.
On doors used as an exit route, agree how people leave in an emergency before choosing the lock, and check local rules for that door.
Each double-sided model is its own product, not a single-sided lock with an extra panel. A2 Double-Sided uses a 6068 motorized mortise and a 5,000 mAh battery, where the single-sided A2 uses four AA batteries and a choice of four mortises. A11 and A6 Double-Sided run on lithium only. R9 Double-Sided fits doors up to 70 mm, against 90 mm for the single-sided R9.
Order by the full double-sided model name, so the panels, lock body, battery and accessories ship together. The profile and courtyard mortise page shows the bodies for A11, A6 and R9.

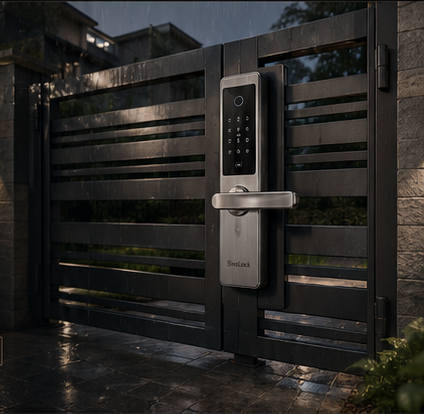

The rear panel needs as much room as the front. On a gate, check for a wall, fence post, glazing bead or second leaf that could block the inside handle. On a double gate, decide which leaf carries the lock and how the other leaf is held.
Both panels face the weather on an outdoor gate, so keep the battery cover, cable route and screw holes sealed when fitting. Test the sample on the real gate: credentials and handle on each face, locking, the mechanical key and charging.
No. Choose double-sided only when people need a full credential panel on both sides. For access from one side, a single-sided IP66 lock or the L1 rim lock is enough. For a PIN from the inside, L2 is the L1 version with a keypad built into the rear lock body.
A2 Double-Sided, for doors 40–120 mm thick with a 6068 mortise. A11, A6 and R9 Double-Sided are for aluminum profile doors up to 90 mm (70 mm for R9).
No. Both double-sided models use a 1,000 mAh lithium battery. The single-sided A6 uses AAA batteries, and the single-sided A11 comes in lithium or AAA versions.
R9 Double-Sided, as an optional 3D face version with the face reader on the outside panel.
Photos of both faces of the door, the edge and the strike, the door thickness, quantity and market, and a short note on who enters and leaves from each side.
Show us the gate or door and tell us who needs to pass through it. We will recommend the double-sided model and prepare a sample for your door.
