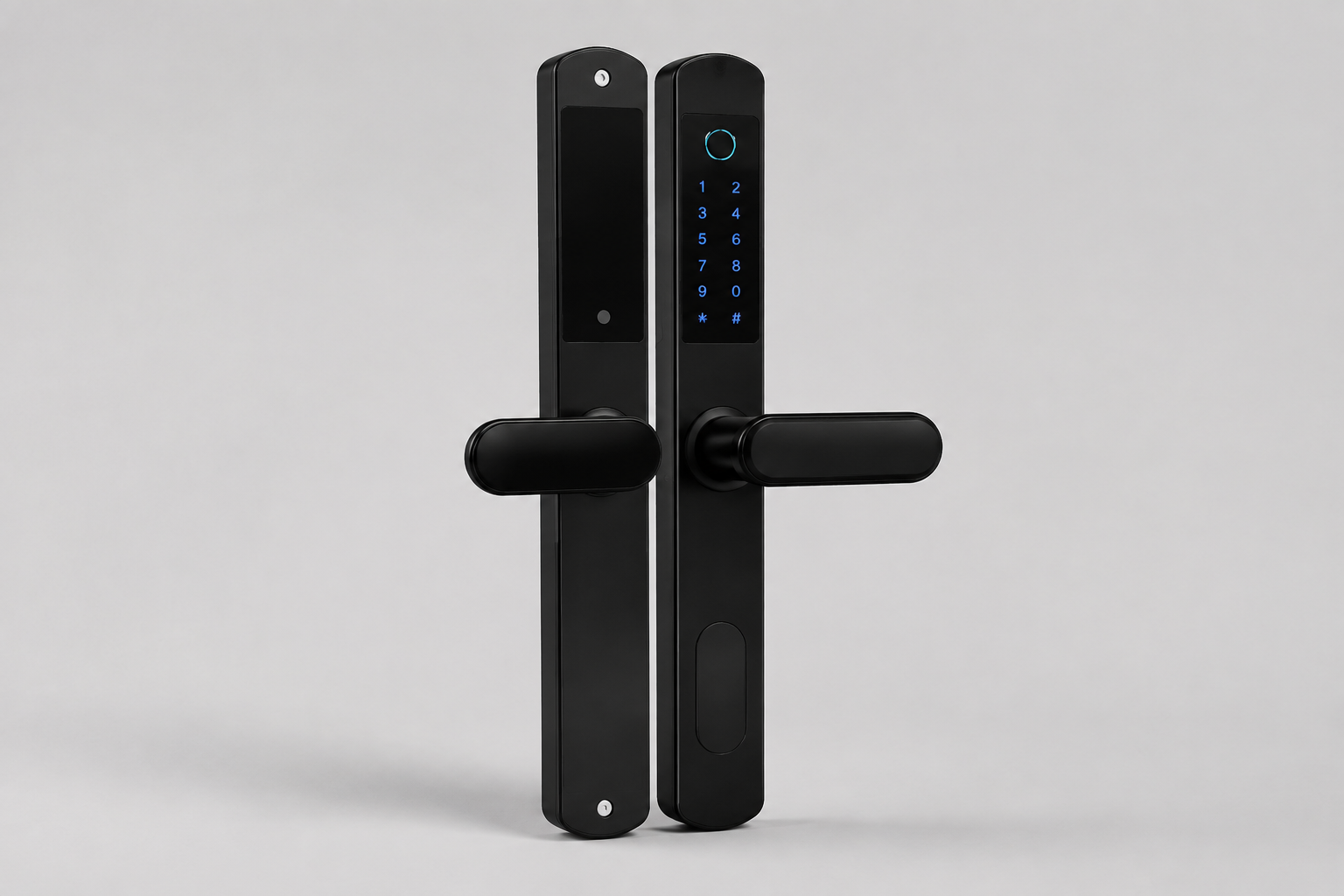

A11 Stainless Steel Profile Door Smart Lock
A11 is a narrow-panel smart lock built with 304 stainless steel for profile, thermally broken aluminum, courtyard, and wooden doors. It combines IP66 protection with a 40–90 mm door-thickness range, multiple mortise options, and available lithium or AAA power versions together with optional Tuya WiFi, remote control, and compact-handle configurations.
Why A11 works for narrow-profile door projects
A11 is built for slim frames where panel width, door thickness, and hardware clearance matter. It combines a narrow stainless steel body with IP66 protection and flexible access options.
Narrow 40 mm panel
Approx. 290 × 40 mm panels suit narrow frames while leaving room for profile clearance.
IP66 stainless steel construction
304 stainless steel construction with IP66 protection for profile, thermally broken aluminum, courtyard, and wooden doors.
Flexible power options
A11 is available with a 1000 mAh lithium battery version or a 4 AAA battery version.
Optional connected access
Optional Tuya WiFi, remote control, and compact-handle configurations can be added according to the project.
Door and frame compatibility
A11 supports 40–90 mm door thickness and 2585–7085 mortise options. Profile width, frame depth, handle clearance, opening direction, and the existing lock position can be reviewed after you send the available door information. If exact measurements are not available yet, door and frame photos are enough to start the discussion.
Profile doors
A11 provides a narrow 40 mm panel for profile doors where frame and handle clearance matter.
Thermally broken aluminum doors
The narrow-panel format can suit thermally broken aluminum doors, with final mortise and clearance details reviewed from the actual door.
Courtyard doors
IP66 protection, optional Tuya WiFi, and optional remote control make A11 suitable for courtyard-door projects.
Wooden doors
A11 supports 40–90 mm door thickness, with the final mortise and installation layout matched to the actual door.
A11 configuration options
The same door fit can be paired with different power, connectivity, and handle choices. Pick the version that matches daily use, maintenance preference, and frame clearance.
1000 mAh lithium battery version
Rechargeable version for projects that prefer charging.
1000 mAh lithium battery with 5 V Type-C emergency power.
Profile, thermally broken aluminum, courtyard, or wooden doors with 40–90 mm thickness.
Projects that prefer rechargeable power and a narrow 290 × 40 mm profile-door panel.
4 AAA battery version
Replaceable-battery version for local maintenance.
4 AAA batteries with 5 V Type-C emergency power.
Profile, thermally broken aluminum, courtyard, or wooden doors with 40–90 mm thickness.
Projects that prefer replaceable batteries and local maintenance without charging cycles.
Optional Tuya WiFi version
App-connected version when WiFi is stable.
Optional Tuya WiFi can be added when app-based access is required.
Profile and courtyard doors with stable WiFi conditions.
Projects that need Powered by Tuya (optional), Tuya WiFi (optional), temporary password, or remote-control planning.
Optional small-handle version
Compact-handle version for tighter frame clearance.
A compact-handle option is available where frame or trim clearance is limited.
Profile frames where handle projection, profile distance shown approx. 75 mm, or nearby frame trim changes clearance.
Projects where a smaller handle helps avoid frame, screen, or decorative trim conflict.
A11 access and unlocking methods
Review the credential, backup access, connectivity, and power routes that match how the real door will be used every day.
Fingerprint, PIN code, and RFID card
Daily entry and visitor access for profile-door, courtyard-door, and wooden-door projects.
WeChat temporary password and key backup
WeChat mini-program temporary password and mechanical key access help the project handle visitors and service access.
Optional Tuya WiFi and remote control
Optional Tuya WiFi or optional remote control can be added when app-based access or accessory operation is required.
Battery choice and Type-C emergency power
Lithium or AAA power can match different maintenance preferences, with 5 V Type-C emergency power available for service access.
A11 dimensions, door fit, and hardware details
Panel dimensions, door thickness, mortise options, installed fit, and supplied configuration help show how A11 is applied on profile-door projects.

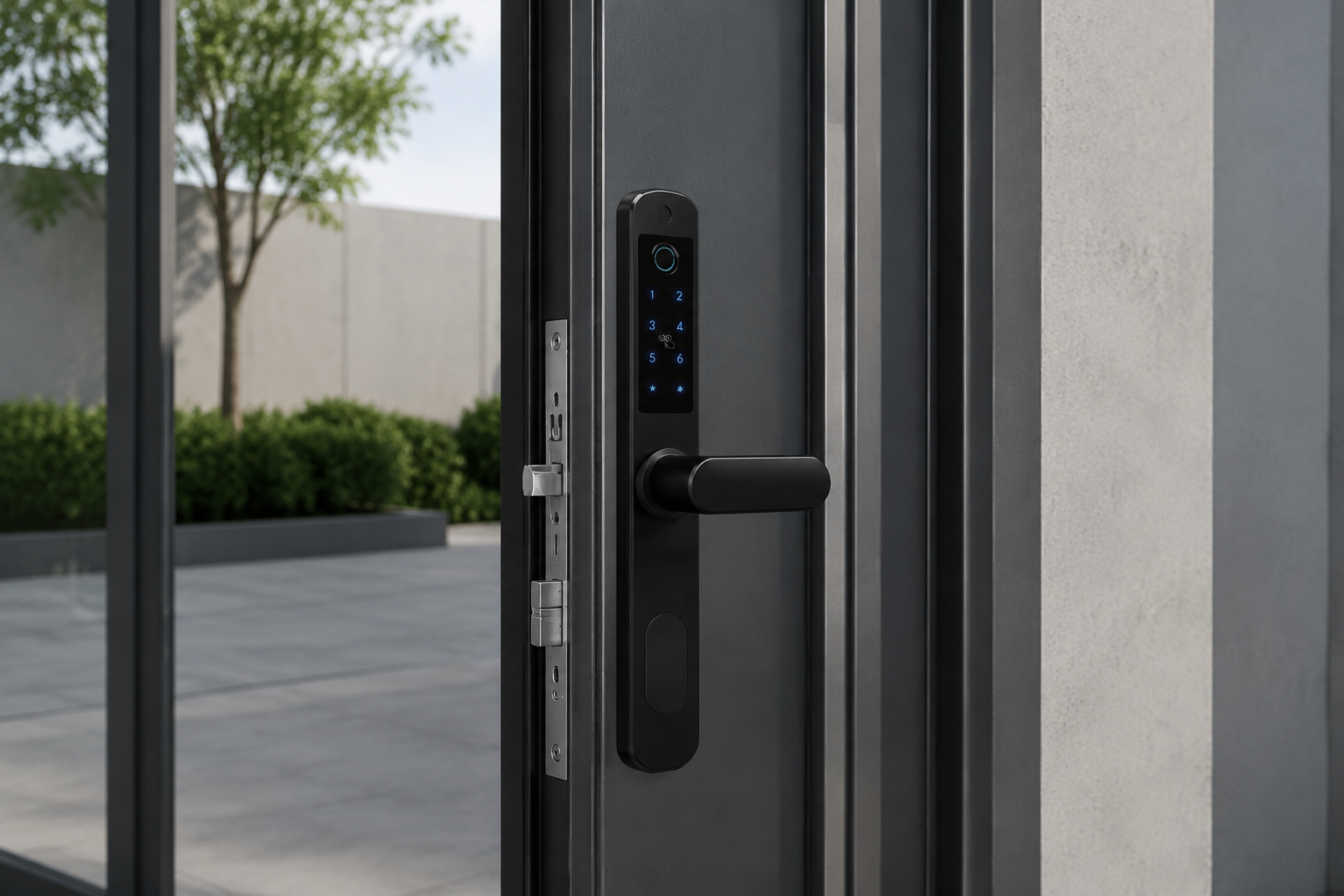

Installed profile-door view
Installed view that shows the lock on a real profile door with the frame and handle in scale.

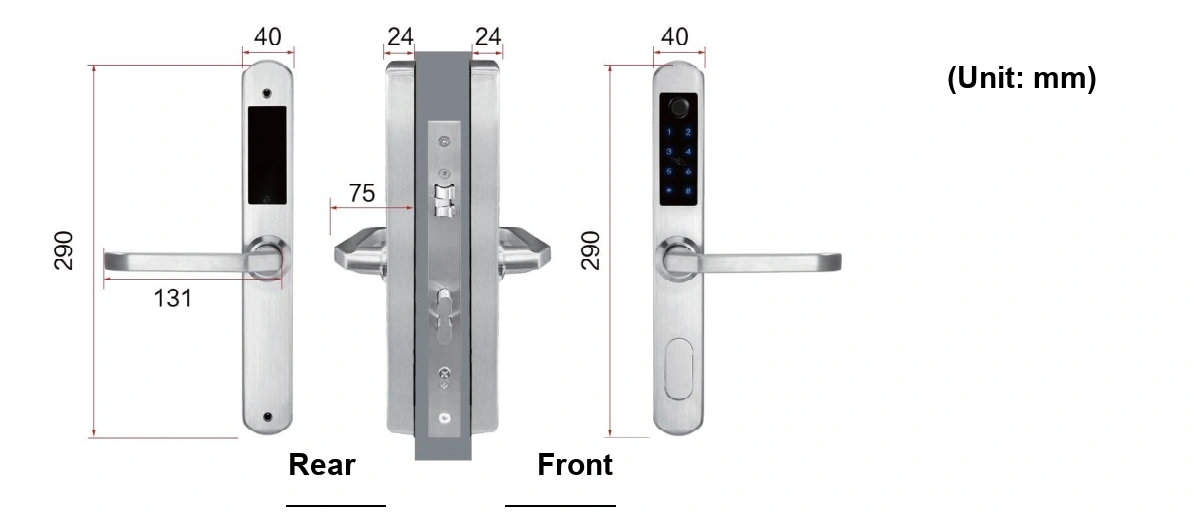

Panel dimensions
Approx. 290 × 40 mm front and rear panels for profile-door fit review.

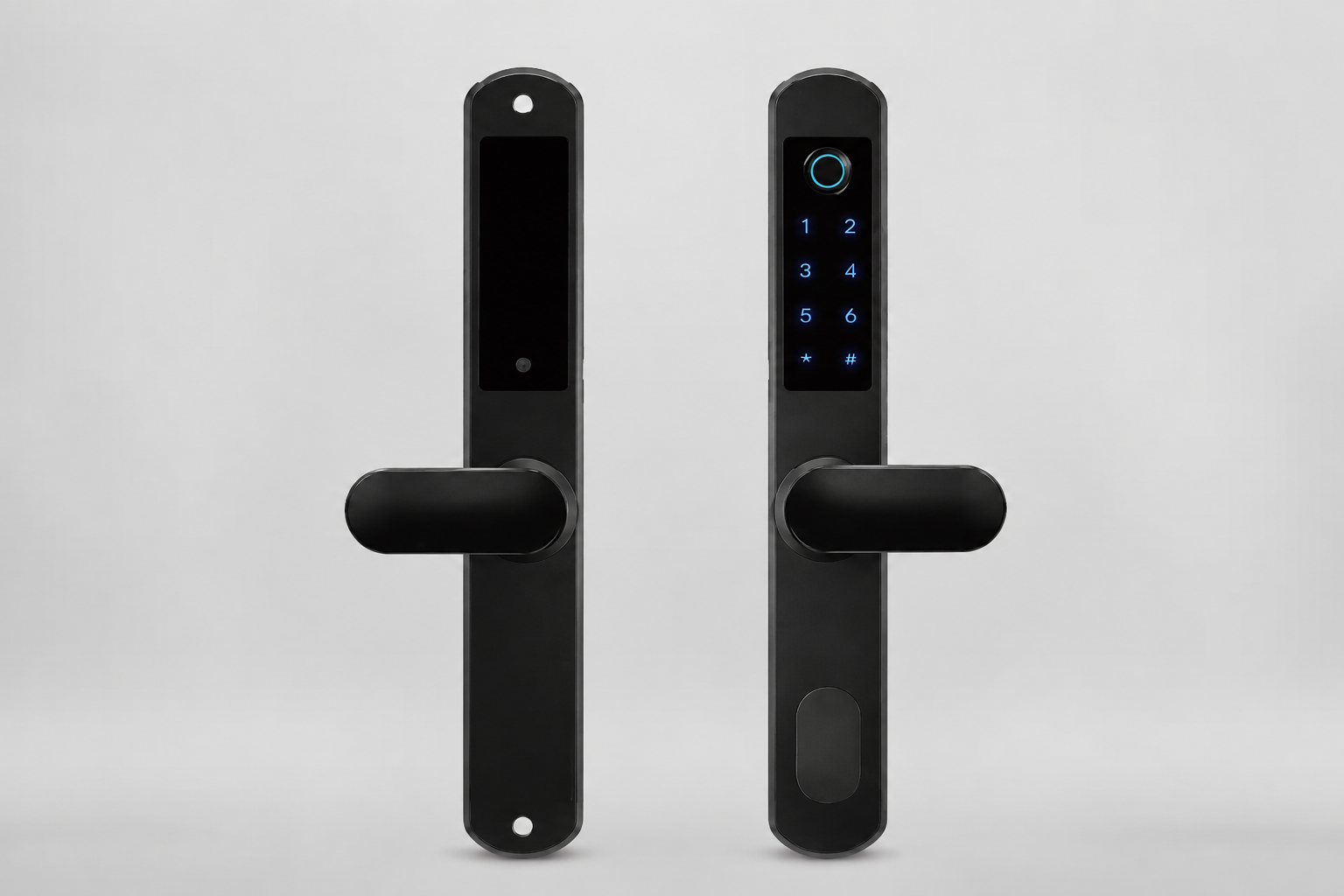

Front and rear panels
Front and rear hardware view showing the panel and handle relationship.

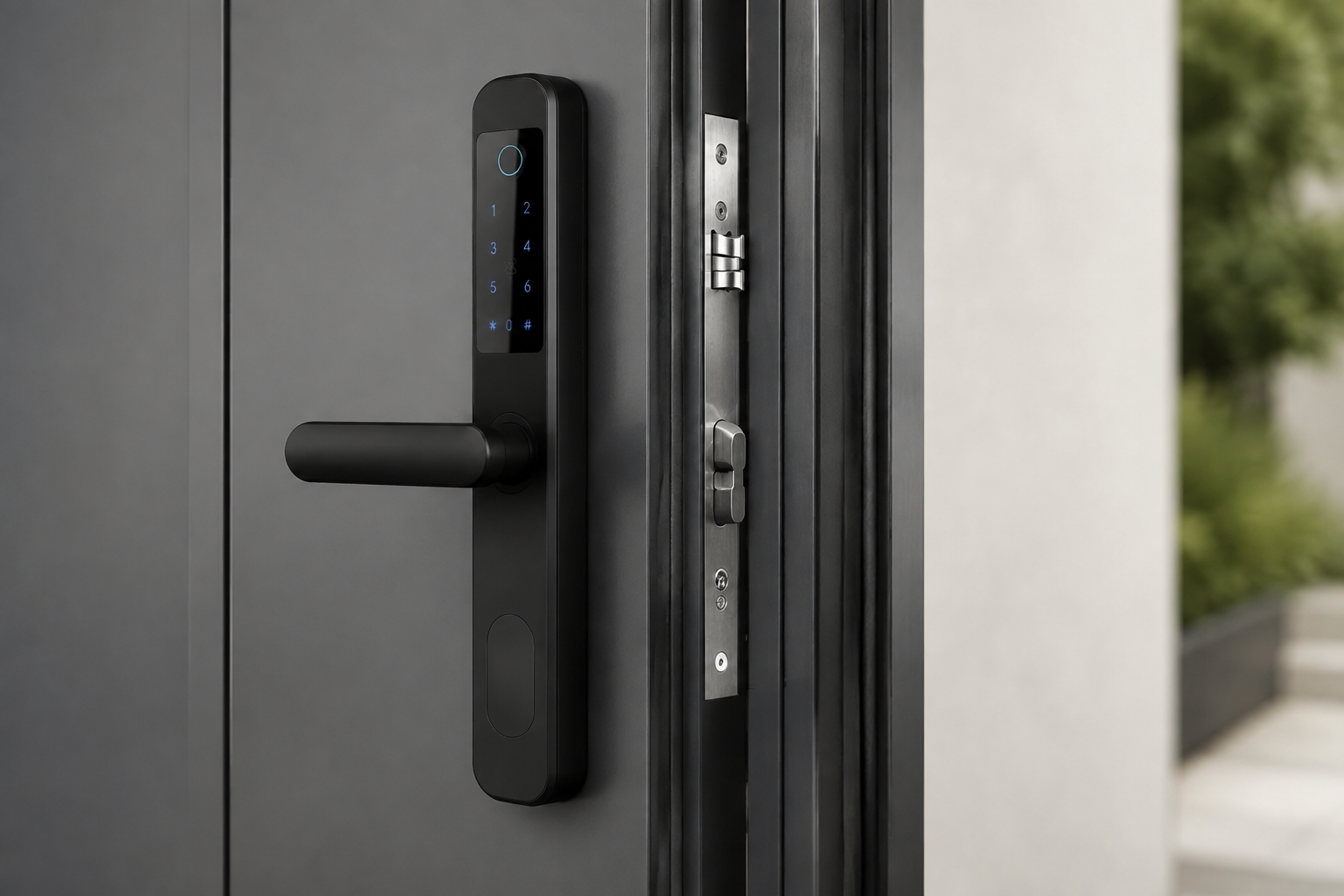

Mortise options
2585–7085 mortise options for profile-door projects with different cutout needs.

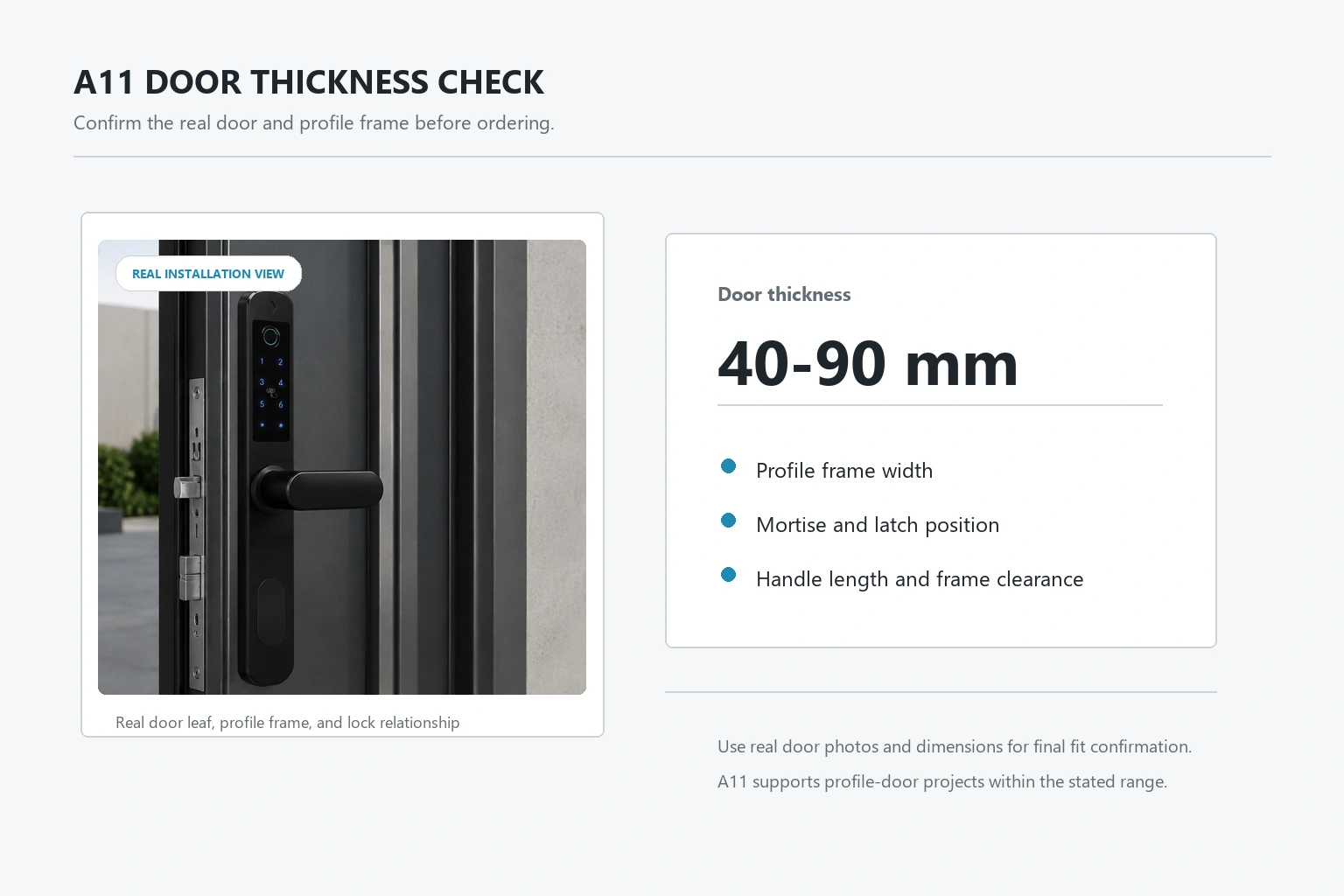

Door thickness
A11 supports a 40–90 mm door-thickness range.

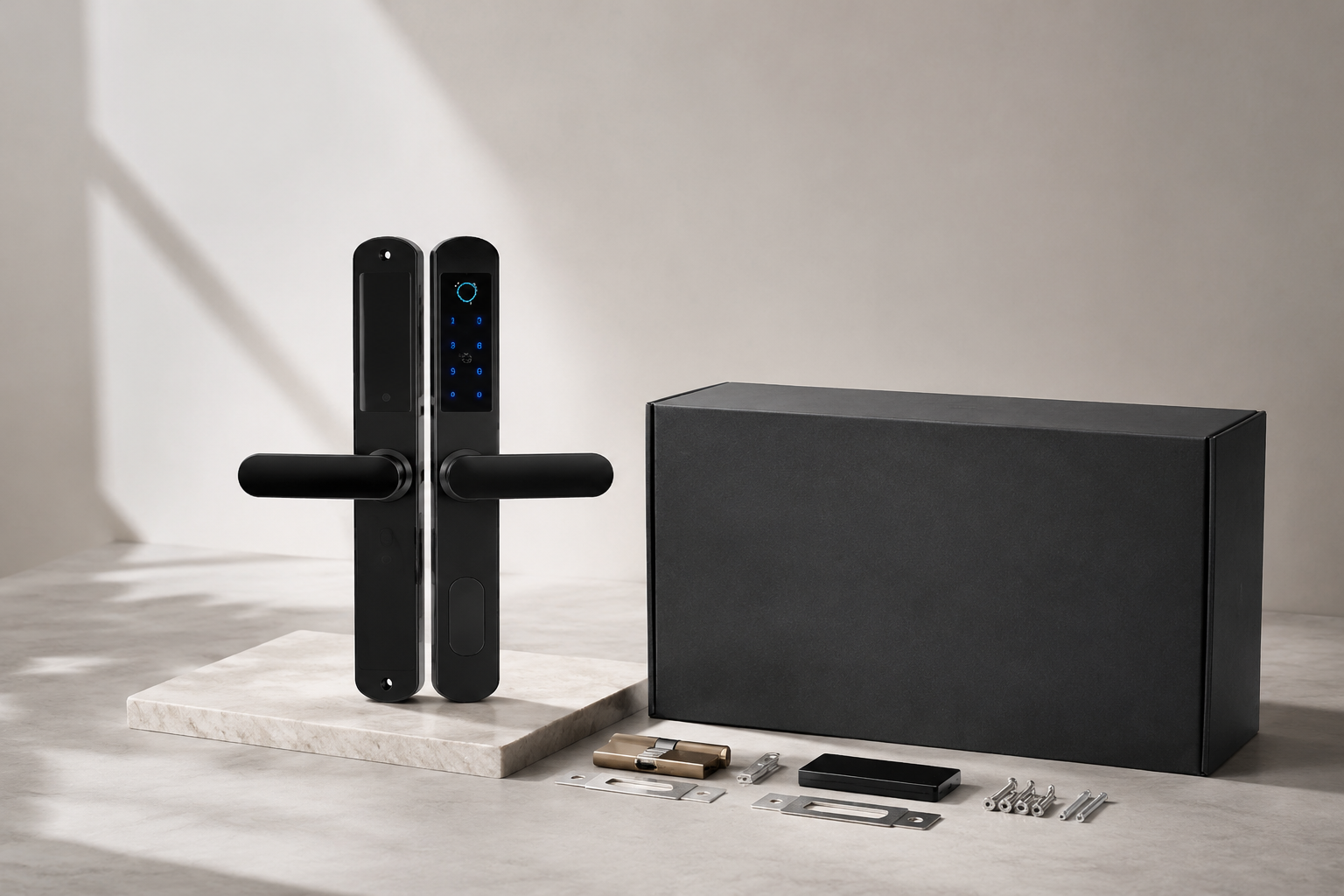

Finish and packaging
Finish and supplied packaging for sample and order review.
A11 technical specifications
Review the key dimensions, material, protection rating, power options, and installation parameters for A11.
Available finishes include Athens black, titanium gold, red bronze, and stainless steel.
Profile width, frame depth, and mortise position can still affect the final fit.
Use the drawing to review handle reach and profile clearance.
5 V Type-C emergency power and –30 °C to 70 °C working temperature support service use.
A11, A6, R9, and double-sided alternatives
These nearby models cover different profile widths, locking styles, and both-side access requirements.
| Model | Best for | Fits when | View |
|---|---|---|---|
| A11A11 Stainless Steel Profile Door Smart Lock | IP66 profile-door and courtyard projects | A11 is the current profile-door option for projects that need 304 stainless steel narrow-panel hardware, lithium or AAA power, optional Tuya WiFi, and 40–90 mm door thickness. | Current model |
| A6A6 Profile Door Stainless Steel Smart Lock | Slim profile-door projects | A6 is closer when the project wants a slimmer profile-door configuration or optional face-recognition direction. | View A6 |
| R9R9 Profile Door Stainless Steel Automatic Smart Lock | Automatic profile-door projects | R9 is closer when automatic locking or a taller profile-door format matters more than lever-handle hardware. | View R9 |
| A11 DOUBLE-SIDEDA11 Dual-Sided Courtyard Door Waterproof Stainless Steel Smart Lock | Smart access from both sides | A11 Double-Sided is closer when smart access is needed on both sides while staying in the A11 family. | View A11 Double-Sided |
What to send for an A11 inquiry
You do not need a complete specification to contact us. Door photos, approximate quantity, destination, or a short requirement note are enough to start. Additional measurements and configuration details can be reviewed during the inquiry.
A11 fit and sample support
SivoLock can review available door photos, dimensions, mortise information, and configuration preferences after your inquiry and help identify the remaining details needed for sampling or quotation.
Door-fit review
We can review 40–90 mm, frame width, mortise position, profile distance, handle clearance, and opening direction from the available project information.
Drawings and product files
Panel, handle, side-depth, and mortise information (front and rear panels approx. 290 × 40 mm, panel depth approx. 24 + 24 mm, handle length approx. 131 mm, profile distance shown approx. 75 mm, and local measured thickness shown approx. 48 mm) can be reviewed according to the A11 configuration.
Sample review
Sample configuration, finish, access functions, accessories, packaging, and labels can be finalized after the required details are discussed.
Project matching
If A11 is not the most suitable direction, nearby profile-door models can be compared using the actual door information.
A11 ordering, samples, and OEM options
Quotation, sampling, customization, packaging, and delivery details are reviewed according to the A11 configuration and order scope.
Quotation details
Pricing follows configuration, quantity, finish, mortise, destination, and required customization.
Samples and MOQ
MOQ can be discussed based on the project, model, configuration, and customization requirements. Sample planning follows the selected configuration and customization scope.
Lead time and shipping
Lead time depends on the model, order quantity, customization requirements, function configuration, finish, and packaging details. Shipping terms are reviewed according to the selected order and destination, including EXW, FOB, CIF, DAP, and DDP.
OEM and warranty
We support logo customization, color customization, function configuration, packaging customization, manual language customization, and mortise matching customization. Other customization requirements are also welcome to discuss with us. A 3-year warranty is available; coverage details follow the selected order and project requirements.
Related profile-door models
If the installation requires a slimmer panel, automatic locking, or smart access from both sides, these nearby models may also be relevant.
Common questions about A11
These answers cover common door-fit, configuration, and inquiry questions. If your project details are incomplete, you can still contact us with the information currently available.
Which doors can A11 be used with?
A11 is intended for profile doors, thermally broken aluminum doors, courtyard doors, and wooden doors with 40–90 mm door thickness. Final fit depends on frame width, mortise model, handle clearance, and opening direction.
What configuration options are available?
A11 can be configured with a 1000 mAh lithium battery version, a 4 AAA battery version, optional Tuya WiFi, optional remote control, and optional compact-handle hardware.
What affects the A11 quotation?
Configuration, quantity, destination, packaging, accessories, and sample scope can affect final pricing.
Can I ask for a quotation if I do not know the exact mortise or frame dimensions?
Yes. Door photos, approximate quantity, destination, or a short description of the application are enough to start. Missing dimensions, mortise details, and configuration choices can be reviewed during the inquiry.
Send your A11 door details
Door photos, approximate quantity, destination, or a short requirement note are enough to start. If measurements, mortise details, app requirements, samples, or OEM options are not yet clear, they can be reviewed with our team after the inquiry.
Helpful details if available
- Door photos and basic application
- Approximate quantity and destination
- Preferred power or app option if known
- Mortise, finish, or handle notes if known
- Sample, packing, or OEM notes if already available
