Smart Lock Quality Control From Components to Final Inspection
Every complete SivoLock lock is checked for its functions, appearance and accessories before it is packed. Packed batches are then sampled again, and representative samples go through salt spray, damp heat and cycle testing. A 12-person quality team at our Jinhua factory runs these checks.

How Inspection Is Organized
| Stage | What is checked | Coverage |
|---|---|---|
| Incoming | Purchased parts and materials: identity, version, dimensions, visible condition | Under the inspection plan, by part and supplier |
| In process | Formed and machined dimensions, fixing positions, welds, surface preparation, assembly | At the stages where each feature is made |
| Finished lock | Agreed functions, appearance and accessories | Every complete lock, before packing |
| Packed batch | Labels, quantities, versions, carton contents | Batch sampling after packing |
| Reliability | Salt spray, damp heat, aging and cycle tests | Representative samples, per validation plan |
| Changed specification | The changed feature | Every unit in the affected batch |
Long-duration and destructive tests are not run on every lock. They run on representative samples, and extra batch testing is added when a critical material or process changes or a risk is identified.
Incoming Parts
Electronic modules, motors, fingerprint sensors, die-cast parts and some lock bodies come from qualified suppliers. Incoming parts are checked for version, dimensions and condition under our inspection plan, so the module in your lock matches the one in your approved sample. Supplier material records are reviewed for the component they cover. A housing material certificate covers the housing, not the whole lock.
During Fabrication and Assembly
Checks focus on the features that affect fit and operation later: formed dimensions, fixing positions, machined interfaces, welds and surface preparation. During assembly, panel alignment, spindle position, fasteners, cable routing and connectors are checked before the lock is closed up.
What We Check on Every Finished Lock

| Area | Checks |
|---|---|
| Identity | Model, panel set, finish, lock body and function version match the order |

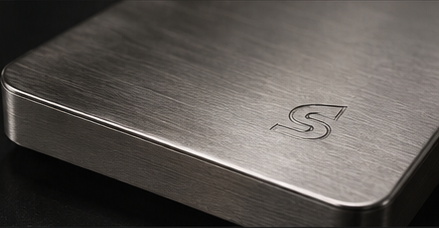

| Appearance | Finish, housing condition, logo and assembly |
| Mechanical | Handle return, latch and bolt movement, mechanical key, inside operation |
| Electronic | Power-on, keypad and reader response, access functions for the model |
| Connected functions | Basic module and app checks for the ordered version |
| Accessories | Spindle, screws, keys, cards, strike or keeper and other ordered items |
Project-specific checks can be added to the quality plan. Tell us the feature, the acceptance criterion and the record you need when you place the order.
Packed-Batch Review and Buyer Inspections

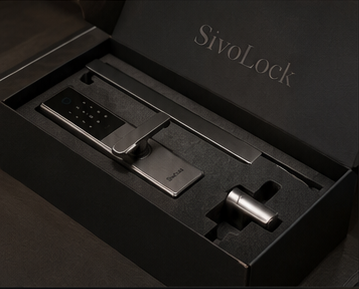

After packing, batch samples are checked for labels, quantities, versions and carton contents. For private-label orders this includes logo, artwork, manual language and packaging against the approved sample.
When you specify acceptance sampling, we agree the plan with you: lot size, inspection level, acceptance criteria and how a failed result is handled. The plan can be based on ISO 2859-1. Third-party pre-shipment inspections arranged by buyers are welcome; share the scope and timing with the order.

Our Test Equipment
| Equipment | Used for |
|---|---|
| Lock function testers | Mechanical and electronic operation |
| Constant temperature and humidity chamber | Damp heat and temperature evaluation |
| Salt spray equipment | Corrosion evaluation of materials, finishes and assemblies |
| Aging and cycle-test stations | Repeated-operation endurance |
Our internal lab supports product development and quality control; it does not offer testing to outside customers. A test result applies to the tested construction and conditions; salt spray hours do not convert directly into years at a real site. Test methods and how to read reports are explained on our Corrosion Resistance page.
IP ratings are model-specific and are listed on each model page. For outdoor selection, see Outdoor Durability.






Change Control: One Version From Request to Carton
A requested change is confirmed in writing, then issued by engineering as a controlled drawing and bill of materials. Production, quality and packing all work from that version, and every unit in the batch is checked against the changed feature.
Example: two spindle versions in one order. In 2024 a European door manufacturer ordered 1,500 smart gate locks: 600 with a spindle 5 mm longer and 900 with the original length. We confirmed quantities and specifications in writing and issued two clearly marked sub-versions. The factory kept them separate through material issue, assembly and packing. Quality checked every unit against its version and verified the carton marks, packing lists and accessories for each group. All 1,500 sets were delivered on schedule, and installation feedback was normal.
We have run this formal change procedure since 2022.
When a Check Fails
A nonconforming product is taken out of the normal release route, corrected and checked again. If the issue may affect a batch, we trace it through production and components to find the source. Our head of quality can hold any batch that does not meet agreed requirements, and it is released only after corrective action and reinspection.
Certifications and Product Documents
In 2024 our Jinhua manufacturing subsidiary obtained ISO 9001 and ISO 14001 management system certification. These certify how the company is managed. They are not product certifications.
For our products we hold CE (RED), RoHS and FCC test reports, IP test reports to IEC 60529, salt spray test reports to ISO 9227, an independent laboratory's SUS304 material test, and high and low temperature, damp heat and service life test reports. Copies are available on request for the relevant models covered by the report; Quality Documents describes each one.
Frequently Asked Questions
Is every lock tested?
Every complete lock gets a function, appearance and accessory check before packing. Salt spray, damp heat and cycle tests run on representative samples, not on every unit.
Can we send our own inspector?
Yes. Share the inspection scope, sampling plan and timing with your order, and we will prepare the batch, samples and documents.
Do you have salt spray test reports?
Yes. Salt spray test reports to ISO 9227 exist for specific models and finishes. Tell us the model, finish and target market, and we will check which report covers it.
What happens if you change a part during my order?
Any specification change needs your written confirmation first. The changed batch is built from a new controlled version, and every unit is checked against the change.
Build a Quality Plan for Your Order
Send the model and configuration, your acceptance criteria and the documents your market requires. For custom orders, add the changed dimensions, finish or branding references.
